PPTC041LFBN-RC
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PPTC041LFBN-RC
Datasheet:
Description:

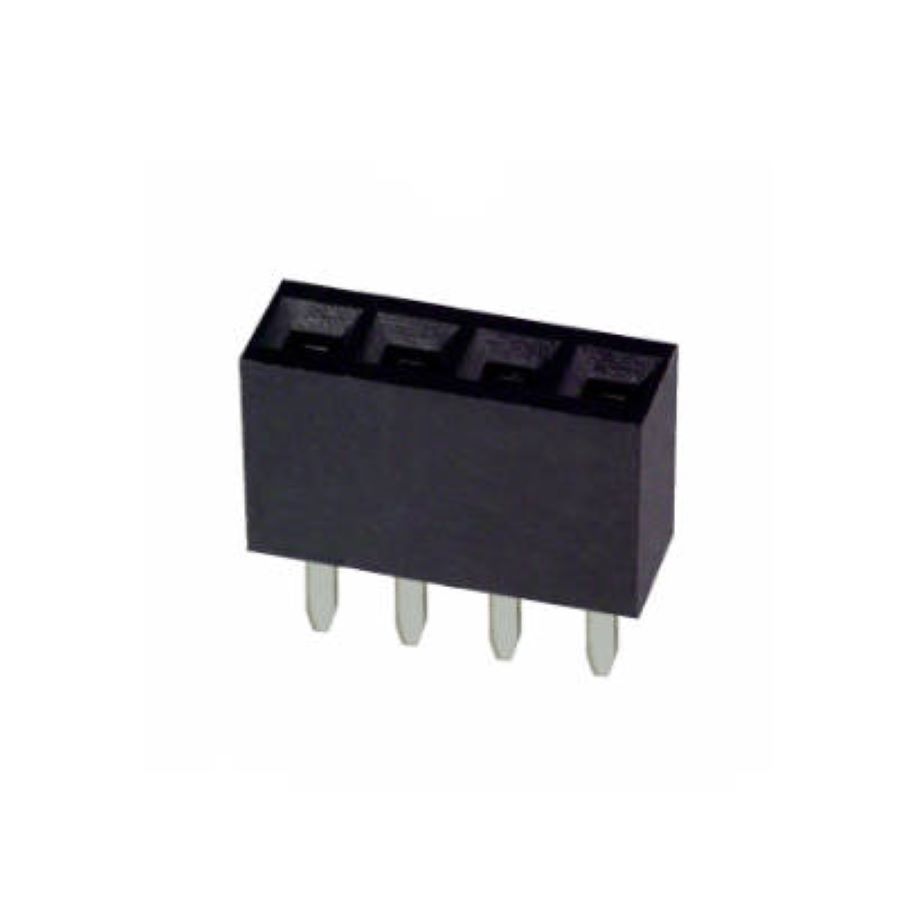

Headers and Wire Housings Through Hole Header, Socket Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.7 mm |
| Width | 2.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.5 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Gender | Female |
| Connector Type | Header, Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Mating Post Length | 8.51 mm |
| Termination Post Length | 3.2 mm |
Stock: 33554
Distributors
pcbx
pcbxUnit Price$0.25042
Ext.Price$0.25042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25042 | $0.25042 |
| 10 | $0.21464 | $2.14640 |
| 25 | $0.20321 | $5.08025 |
| 50 | $0.19239 | $9.61950 |
| 100 | $0.18214 | $18.21400 |
| 300 | $0.17208 | $51.62400 |
| 500 | $0.16257 | $81.28500 |
| 1000 | $0.15480 | $154.80000 |
| 3000 | $0.14625 | $438.75000 |
| 5000 | $0.13818 | $690.90000 |
| 10000 | $0.13158 | $1315.80000 |
